XT35

  • trimmer

Displacement: (cc)                                   31

Power Output @ 1800 RPM (kW/HP)     0.65/1

Max Torque (N.m - r/min)                       1.1/7000

Bore and Stroke (mm)                             39x26

Compresssion Ratio                                8.3:1

Oil Capacity   (Litres)                               0.07

Fuel Capacity (Litres)                               0.6

Net Weight (Kg)                                       3.3

Clutch System

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Brush Cutter, Grass Trimmers



XT097

  • generator

Displacement: (cc)                                  97

Power Output @ 1700 RPM (kW/HP)    1.8/2.5

Max Torque (N.m - r/min)                       3.1/3000

Bore and Stroke (mm)                             52x46

Compression Ratio                                  7.0:1

Oil Capacity   (Litres)                               0.4

Fuel Capacity (Litres)                               1.4

Net Weight (Kg)                                       9

Engine Mount (mm)                                 65.1

Shaft Taper                                               PT 1a

Application - Generator (Max kVa)        1

Shaft Straight  (Diameter mm)                15

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

 Application: Generator




XR150

  • rammer

Displacement: (cc)                                  149

Power Output @ 1700 RPM (kW/HP)    2.5/4.5

Max Torque (N.m - r/min)                      7.2/4000

Bore and Stroke (mm)                            65x45

Compresssion Ratio                                8.2:1

Oil Capacity   (Litres)                              0.4

Fuel Capacity (Litres)                              0.85

Net Weight (Kg)                                      7.2

Shaft Straight (Diameter mm)                 15

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Rammer



XT196

  • petrol sprasyer
  • waterpimp
  • generator
  • shredders
  • drive units
  • plant protection

Displacement: (cc)                                  196

Power Output @ 1700 RPM (kW/HP)    4.8/6.5

Max Torque (N.m - r/min)                      10.7/2500

Bore and Stroke (mm)                            68x54

Compression Ratio                                 8.5:1

Oil Capacity   (Litres)                              0.6

Fuel Capacity (Litres)                              3.6

Net Weight (Kg)                                      16

Engine Mount (mm)                                65.1

Shaft Taper                                               J 609b

Application - Generator (Max kVa)         3.5

Shaft Straight (Diameter mm)                19.05

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Pumps, Lawn cutting equipment,  Shredders, High Pressure Washers, Hydraulic Pumps, Drive Units



Double Chain Technology

Increases Torque and gives extra durability

XT196CHR

  • concrete mixer

Displacement: (cc)                                  196

Power Output @ 1700 RPM (kW/HP)    4.8/6.5

Max Torque (N.m - r/min)                      10.7/2500

Bore and Stroke (mm)                            68x54

Compression Ratio                                 8.5:1

Oil Capacity   (Litres)                              0.6

Fuel Capacity (Litres)                              3.6

Net Weight (Kg)                                      16

Engine Mount (mm)                                65.1

Shaft Straight  (Diameter mm)               19.05

Double Chain

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Concrete Mixer

GT200R

  • petrol sprasyer
  • waterpimp
  • generator
  • shredders
  • drive units
  • plant protection

Displacement: (cc)                                  196

Power Output  (kW/HP)                         4.2/5.5

Max Torque (N.m)                                  11.5

Bore and Stroke (mm)                            68x54

Oil Capacity   (Litres)                              0.6

Recommended Oil                                 SAE10W-30

Fuel Capacity (Litres)                              4.2

Net Weight (Kg)                                      15.5

Shaft Straight (Diameter mm)                19.05

Application - General purpose

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Pumps, Lawn cutting equipment,  Shredders, High Pressure Washers, Hydraulic Pumps, Drive Units


Industrial Air Filter

Filtering with 8 stage wind system

Click to view     >>>

404-4043702_transparent-adobe-creative-c


XT270

  • petrol sprasyer
  • waterpimp
  • generator
  • shredders
  • drive units
  • plant protection
  • rammer

Displacement: (cc)                                270

Power Output @ 1700 RPM (kW/HP)  6.6/9

Max Torque (N.m - r/min)                    15.8/2700

Bore and Stroke (mm)                           77x58

Compression Ratio                                8.2:1

Oil Capacity   (Litres)                             1,1

Fuel Capacity (Litres)                             6

Net Weight (Kg)                                    16

Engine Mount (mm)                              PD 165.1

Shaft Taper                                             J 609b

Application - Generator (Max kVa)       3.5

Shaft Straight  (Diameter mm)               25.4

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Pumps, Lawn cutting equipment,  Shredders, High Pressure Washers, Hydraulic Pumps, Drive Units, Plate Compactor




XT390

  • petrol sprasyer
  • waterpimp
  • generator
  • shredders
  • drive units
  • plant protection

Displacement: (cc)                                  389

Power Output @ 1700 RPM (kW/HP)    9.5/13

Max Torque (N.m - r/min)                      22/2700

Bore and Stroke (mm)                            88x64

Compression Ratio                                 8.0:1

Oil Capacity   (Litres)                              1.1

Fuel Capacity (Litres)                              6.5

Net Weight (Kg)                                      31

Engine Mount (mm)                                PD 165.1

Shaft Taper                                               J 609b

Application - Generator (Max kVa)         6.5

Shaft Straight (Diameter mm)                 25.4

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Pumps, Lawn cutting equipment,  Shredders, High Pressure Washers, Hydraulic Pumps, Drive Units


Electric start

XT390-E

  • petrol sprasyer
  • waterpimp
  • generator
  • shredders
  • drive units
  • plant protection
  • rammer

Displacement: (cc)                                  389

Power Output @ 1700 RPM (kW/HP)    9.5/13

Max Torque (N.m - r/min)                      22/2700

Bore and Stroke (mm)                            88x64

Compression Ratio                                 8.0:1

Oil Capacity   (Litres)                              1.1

Fuel Capacity (Litres)                              6.5

Net Weight (Kg)                                      31

Engine Mount (mm)                                PD 165.1

Shaft Straight  (Diameter mm)               25.4

Application - Generator (Max Kva)        6.5

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Pumps, Lawn cutting equipment,  Shredders, High Pressure Washers, Hydraulic Pumps, Drive Units, Plate Compactor

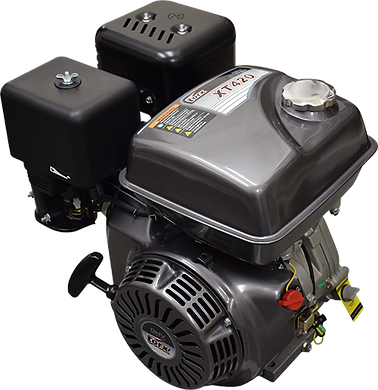

XT420

  • petrol sprasyer
  • waterpimp
  • generator
  • shredders
  • drive units
  • plant protection

Displacement: (cc)                                  420

Power Output @ 1700 RPM (kW/HP)    11/15

Max Torque (N.m - r/min)                       23/2750

Bore and Stroke (mm)                             90x66

Compression Ratio                                  8.4:1

Oil Capacity   (Litres)                               1.1

Fuel Capacity (Litres)                               6.5

Net Weight (Kg)                                       31

Engine Mount (mm)                                 PD 165.1

Shaft Taper                                               J609b

Application - Generator (Max kVa)         7.5

Shaft Straight  (Diameter mm)                25.4

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Pumps, Lawn cutting equipment,  Shredders, High Pressure Washers, Hydraulic Pumps, Drive Units




Electric start

XT420-E

  • petrol sprasyer
  • waterpimp
  • generator
  • shredders
  • drive units
  • plant protection
  • rammer

Displacement: (cc)                                  420

Power Output @ 1700 RPM (kW/HP)    11/15

Max Torque (N.m - r/min)                       23/2750

Bore and Stroke (mm)                             90x66

Compression Ratio                                  8.4:1

Oil Capacity   (Litres)                               1.1

Fuel Capacity (Litres)                               6.5

Net Weight (Kg)                                       31

Engine Mount (mm)                                 PD 165.1

Shaft Taper                                               J609b

Application - Generator (Max kVa)         7.5

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily



GB680 / GT680

  • petrol sprasyer
  • waterpimp
  • generator
  • vrting

Displacement: (cc)                                  679

Power Output @ 1700 RPM (kW/HP)    14.5/22

Max Torque (N.m - r/min)                       42/3900

Bore and Stroke (mm)                             78x71

Compression Ratio                                  8.5:1

Oil Capacity   (Litres)                               1.5

Fuel Capacity (Litres)                               /

Net Weight (Kg)                                       43.5

Shaft Taper                                               Honda

Shaft Straight (Diameter mm)                 25.4

  • Over Head Valve Technology

  • Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

  • Mechanical speed governor which enables an engine to rotate more steadily

Application: Generator, Go carts,  Water Pumps, High Pressure Cleaner Pump


Electric start
